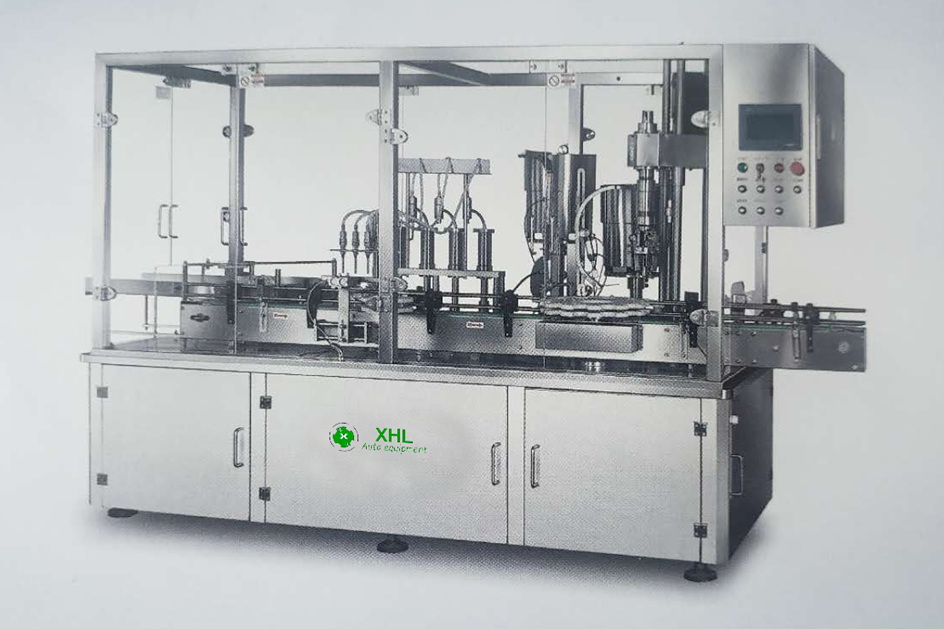

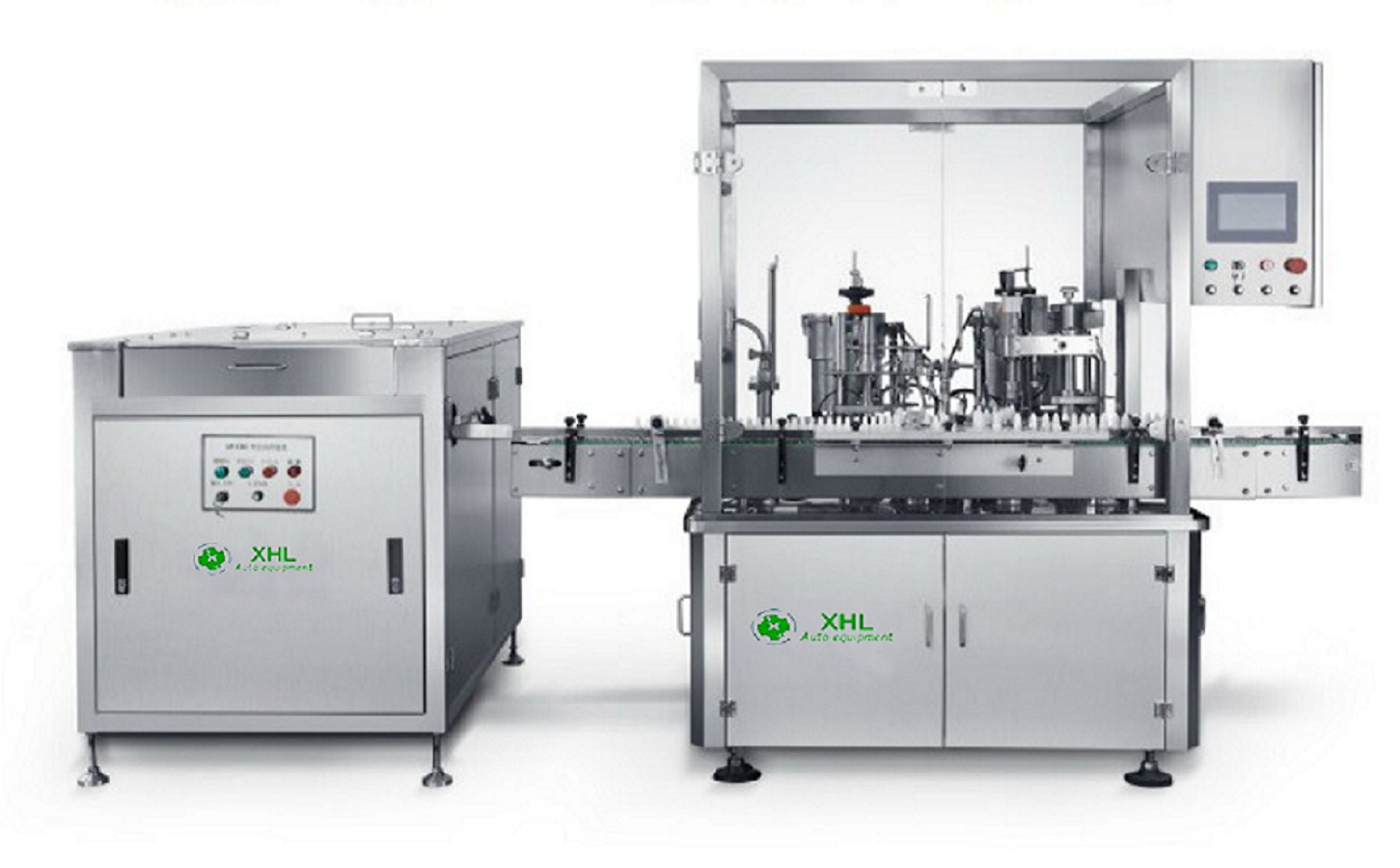

Overview
The machine is mainly used to complete such procedures as conveying, filing ,inner stoppler feeding, outer cap feeding and outer cap turning for the eye drop bottles. It is also applicable to production of other small volume products in plastic bottles. It can be used singly or for integrated operation.
Working Principle
The empty bottle is sent by the conveying mechanism to the rotary table positioning mechanism of the filling machine. There is a station for air washing at the bottle inlet. After air washing is completed, it enters the large rotary table and is subject to nitrogen filling before filling. When the bottle is detected by the bottle feeding photoelectric sensor, the filling and lifting mechanism is pressed downward, the filling needle is inserted into the bottle, and the whole pump body liquid feeding and filling head liquid discharging process is completed by the metering pump. After the filling is completed, it is subject to nitrogen filling. The lifting mechanism is raised, and the rotary table moves the bottle to the stoppling station. The stopple is sucked up by the stopple suction nozzle, which is driven by the cam to the top of the bottle mouth through circumferential movement (the bottle clamping station clamps the bottle mouth). The inner stopple is pressed downward into the bottle mouth. The rotary table takes the stoppled bottle to the capping station, and the cap suction nozzle takes the cap to the top of the bottle mouth. Carry out pre-pressing. The rotary table takes the capped bottle to the cap turning station, and the cap is tightened by the cap turning head. The rotary table takes the bottle after cap turning out of the rotary table mechanism and sends it to the conveying mechanism, which sends the bottle to the next procedure.
Features
-Touch screen operation platform, PLC control, variable frequency speed control.
- Intermittent bottle moving mechanism with stable and reliable running.
-Optional function of nitrogen filling before and after filling, man-machine interface for adjustment of filling volume, ceramic pump or peristaltic pump can be adopted, driven by servo motor.
-Optional function of bottle air washing.
-No filling in case of no bottle, inner stopple feeding by mechanical hand, no inner stopple feeding in case of no bottle.
-No outer cap feeding in case of no inner stopple, protection for stopple shortage and cap shortage.
-Optional servo-driven cap turning head. The cap turning station is provided with bottle clamping device and cap ejecting device with adjustable torque.
-Replacement of parts is simple and easy to operate.
Main Technical Parameters
| Product model: | XHL-DXYG2/1/1 | Stable production capacity(bottles/minute): | 50-60 |
| Bottle moving mode: | Intermittent type | Number of filling heads: | 2 head |
| Number of cap pressing heads: | 1 head | Number of cap turning head: | 1 head |
| Filling accuracy: | ≤±0.5% | Stoppling rate: | ≥99.9% |
| Pass rate: | ≥99.9% | Compressed air pressure: | 0.4-0.6MPa |
| Total power: | ≤3kw | Power supply: | 220/380V 50/60Hz |
| Weight: | 1200kg | Outline dimension: | See schematic |
Our Services and Warranty
1.We can customize the machine as customer required.
2.Available for OEM/ODM service.
3.Offer living broadcast or video support.
4.To Door installation and training service.
5.Offer filling line solution with customer requirement.
6.Customer’s design are welcomed.
7.Competitive price with on-time delivery.
8.Main spare parts one year warranty ( personal damaged except ).
We can customize with your packaging materials, production capacity and demands.
We will provide you with associated design solutions and case videos.
